Nila's SL25 gives you the flexibility you need to light a full range of small and medium-sized facilities. It was designed to replace 500W metal halide or 1500W tungsten fixtures. With a power draw of only 190W, flicker-free operation, and the most light output in its class, the SL25 is the most efficient way to light your court, rink, or field. It's the upgrade that will save you money.



SL25 SPECIFICATIONS

  • lumen output: 19000
  • luminous efficacy: 100
  • optical efficiency: 95%
  • input voltage (low): 90-305VAC
  • input voltage (high): 180-528VAC
  • input current: 1.7A at 110V
  • system watts: 190
  • power factor (low): >.98 @ 115VAC, >.95 @ 277VAC
  • power factor (high):  >.98 @ 230VAC, >.93 @ 480VAC
  • dim range: 0-100% (onboard dimmer)
  • stroboscopic flicker: <0.01%
  • UV output: none

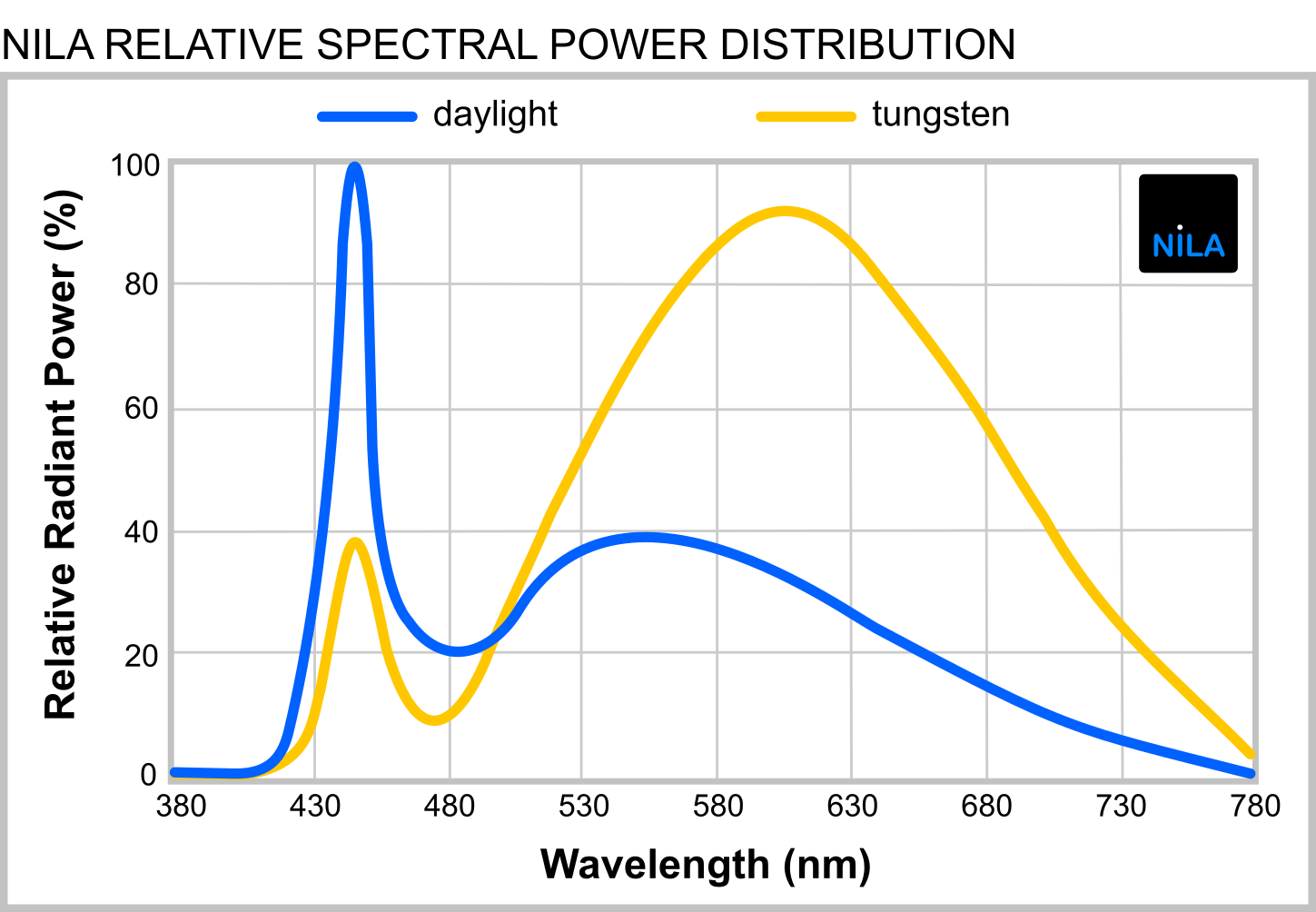

  • color spectrum: continuous
  • CRI: 92 (3200°K), 85 (5600°K)
  • TLCI: 87 (3200°K), 80 (5600°K)
  • CCT: tungsten - 3200°K, NBA - 4500°K, daylight - 5600°K
  • beam angle: 10° to 80°
  • focus method: holographic film lenses
  • controls: wireless or wired RDM-DMX512
  • weight: 17.3 lbs. (7.85 kg)
  • IP rating: 65
  • certifications: ETL & CE
  • operating temperature: -22°F to +131°F (-30°C to +55°C)
  • housing construction: machined aluminum
  • mounting options: harness or yoke (w/pin or bolt)
  • operating position: any
  • cooling: passive (no fans)
  • input power lead: attached 10' cable
  • country of origin: USA
  • projected lifespan: 60,000 hours
  • warranty period: five years (option for ten years)




sl25 beam spreads 2016.png
